What you need
| Field | What it does |
|---|---|
| API Login ID | Identifies your account on API calls. Paired with the Transaction Key. |
| Transaction Key | The secret half of API auth. With the Login ID, it mints each payment form. Secret. |
| Signature Key | Confirms a webhook truly came from Authorize.Net. Separate from the Transaction Key. Secret. |
| Success URL / Cancel URL | Where the buyer lands after paying or backing out. |
The API Login ID and Transaction Key always travel together. The Signature Key is independent.
Why we ask for each field
API Login ID
Names your account on API calls. It works only when paired with the Transaction Key.
Transaction Key
The secret that proves an API request is yours. With the API Login ID, it lets us build the hosted payment form, so the charge runs through your account.
Signature Key
Proves an incoming webhook is genuinely from Authorize.Net, so nobody can forge a "paid" event. It is a separate value from the Transaction Key.
Success and Cancel URL
Plain settings: where the buyer lands after paying or backing out. Not secret.
Set up
- Open Account and API Settings (in the sandbox)

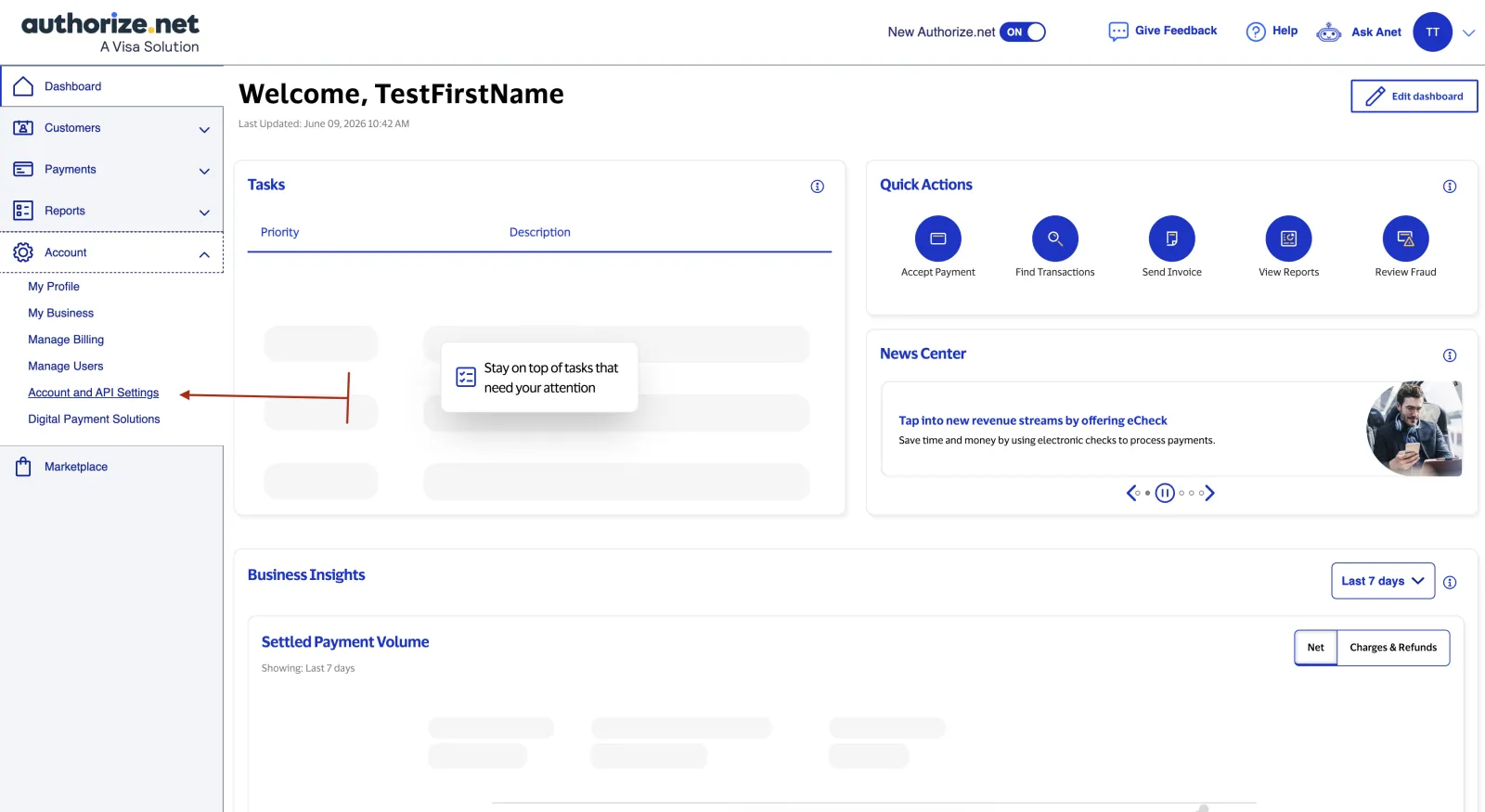

This walkthrough uses Authorize.Net’s free sandbox, so you can wire everything up and test it without a paid account. Sign in to the sandbox Merchant Interface at sandbox.authorize.net, open Account in the left menu, and click Account and API Settings.
Create a free sandbox account (no card required) ↗
Authorize.Net (sandbox) → Account → Account and API Settings Going live is the exact same flow: every screen and step below is identical. The only difference is that the live Merchant Interface at authorize.net needs an approved, paid Authorize.Net merchant account. Once you have one, run these same steps there for your live credentials and webhook, and paste those into the Live tab in Coin Moebius.
- Open API Credentials and Keys

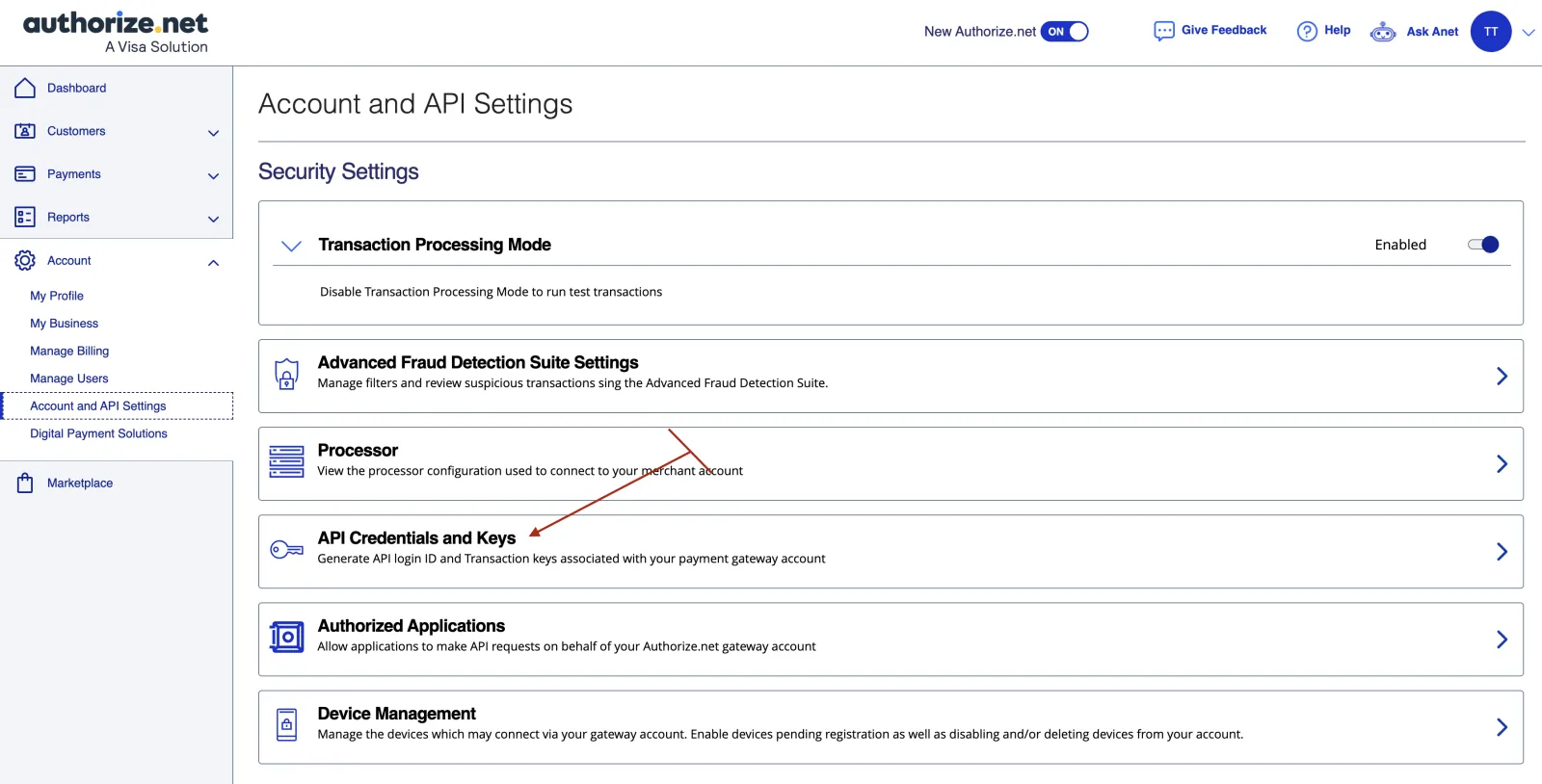

Under Security Settings, click API Credentials and Keys. This one screen holds all three values Coin Moebius needs.
Security Settings → API Credentials and Keys - Copy your three credentials

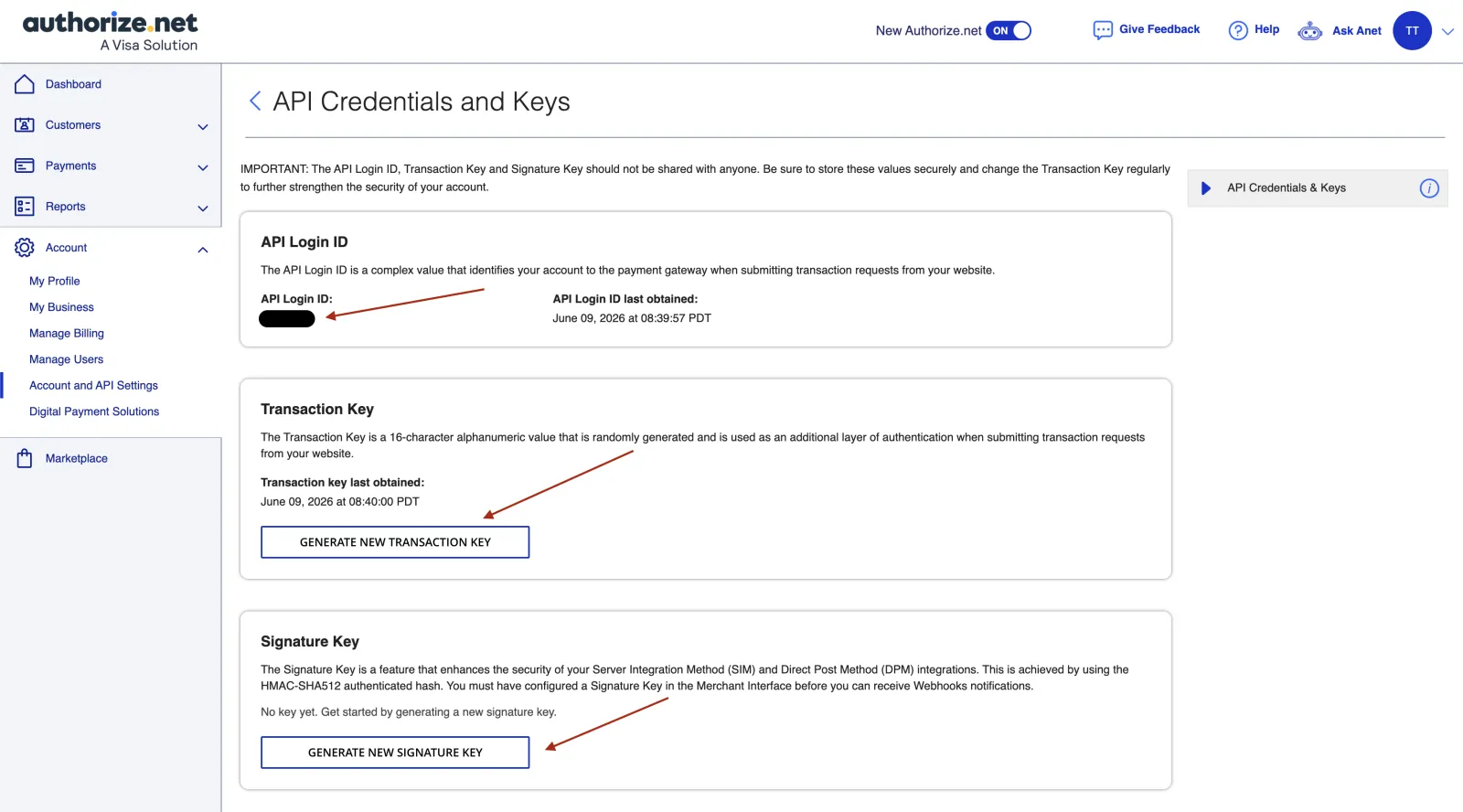

Grab all three from this screen:
- The API Login ID is shown at the top; copy it.
- For the Transaction Key, click Generate New Transaction Key, confirm, and copy it immediately.
- For the Signature Key, click Generate New Signature Key, confirm, and copy it right away.
Authorize.Net → API Credentials and Keys The Transaction Key and Signature Key are each shown only once, when generated, so copy them somewhere safe before leaving the page. The Signature Key is what signs your webhooks; it is a separate value from the Transaction Key.
- Open Webhooks

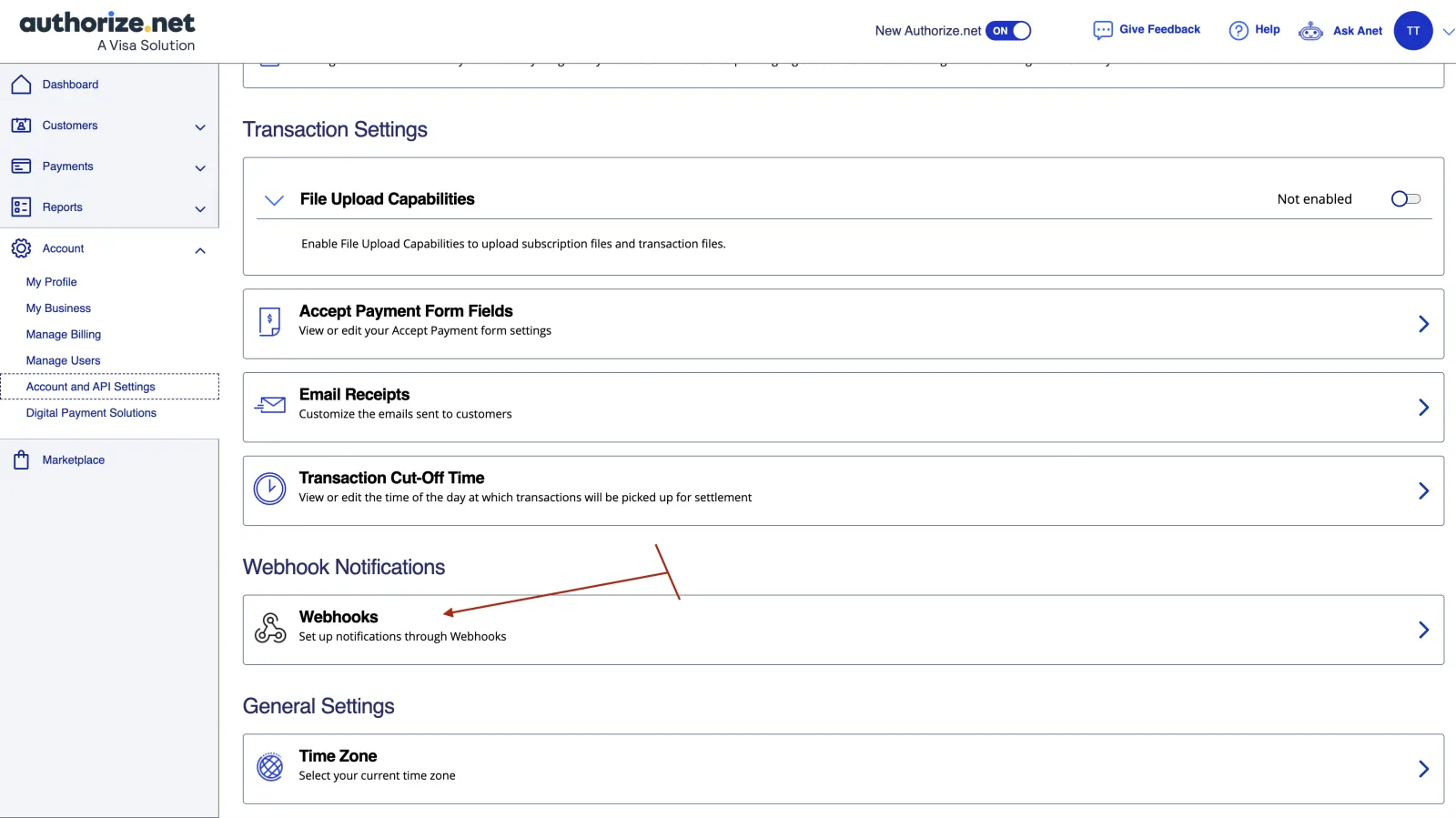

Back on the Account and API Settings page, scroll down to Webhook Notifications and click Webhooks.
Account and API Settings → Webhook Notifications → Webhooks - Create a webhook notification

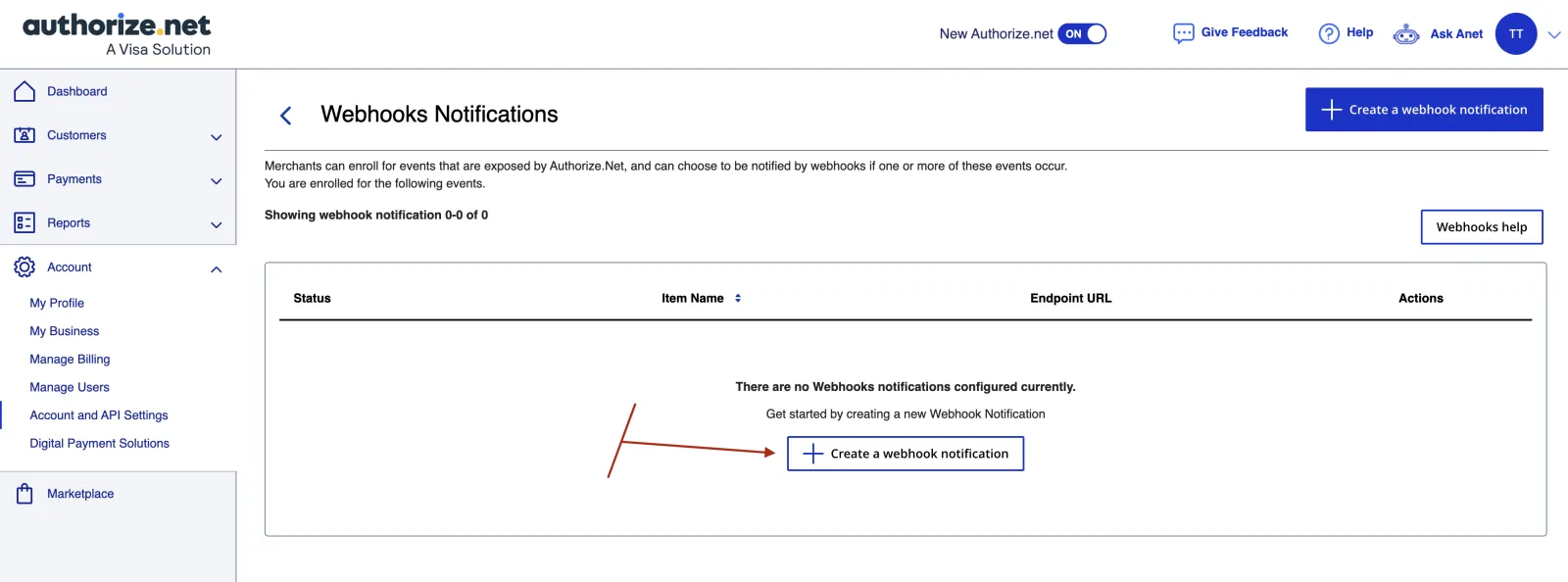

On the Webhooks screen, click Create a webhook notification.
Authorize.Net → Webhooks → Create a webhook notification - Copy your Coin Moebius webhook URL
In a separate tab, open your store in the Coin Moebius dashboard, go to Store settings, and copy the Store id. Your webhook URL is that id dropped into the address below.
https://api.coinmoebius.com/webhook/authorizenet/<your store id>Coin Moebius → your store → Store settings → Store id - Name it and paste your webhook URL

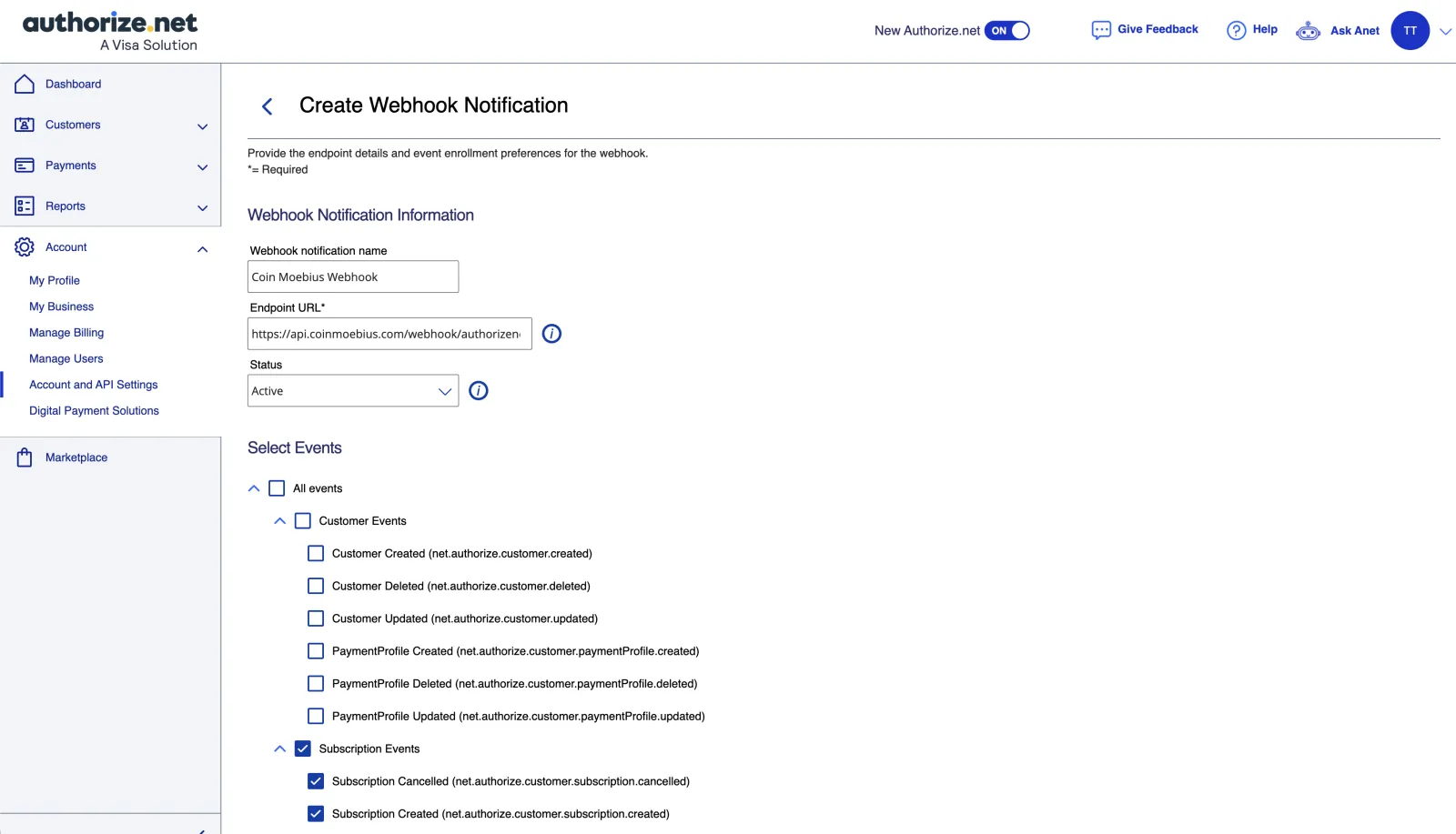

Back in Authorize.Net, give the notification a name like "Coin Moebius Webhook", paste your webhook URL into Endpoint URL, and set Status to Active.
Authorize.Net → Create Webhook Notification - Select your events

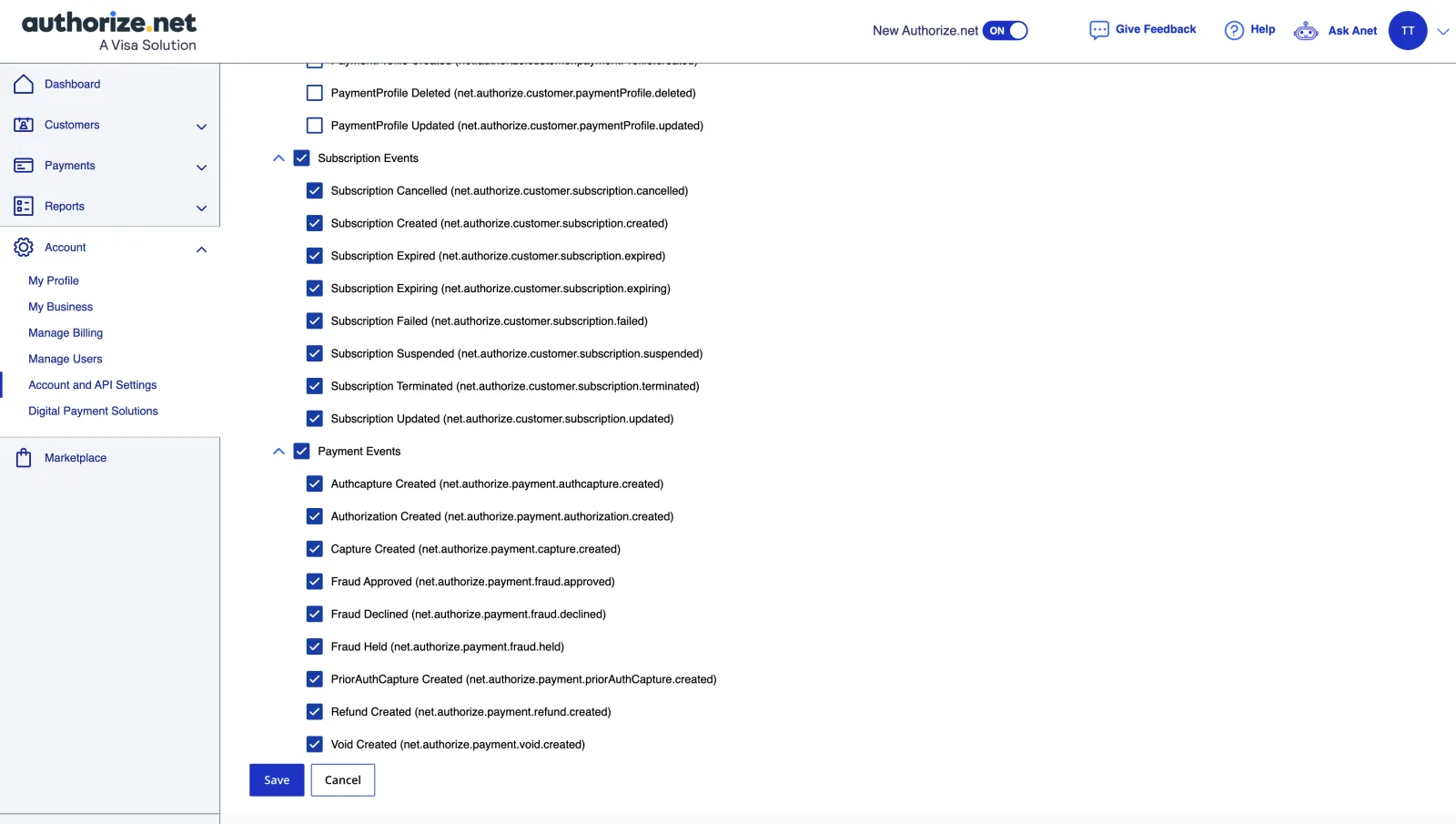

Under Select Events, check the Payment events Coin Moebius listens for, then click Save:
- Authorization Created, Authcapture Created, Capture Created, Prior Auth Capture Created, Refund Created, Void Created.
- The fraud events: Fraud Held, Fraud Approved, Fraud Declined.
Authorize.Net → Create Webhook Notification → Select Events Only check the Subscription events (the net.authorize.customer.subscription.* group) if you actually sell subscriptions. If you only take one-time payments, leave them unchecked. You do not need them. Extra events are harmless either way; we ignore anything we do not use.
- Confirm the webhook is active

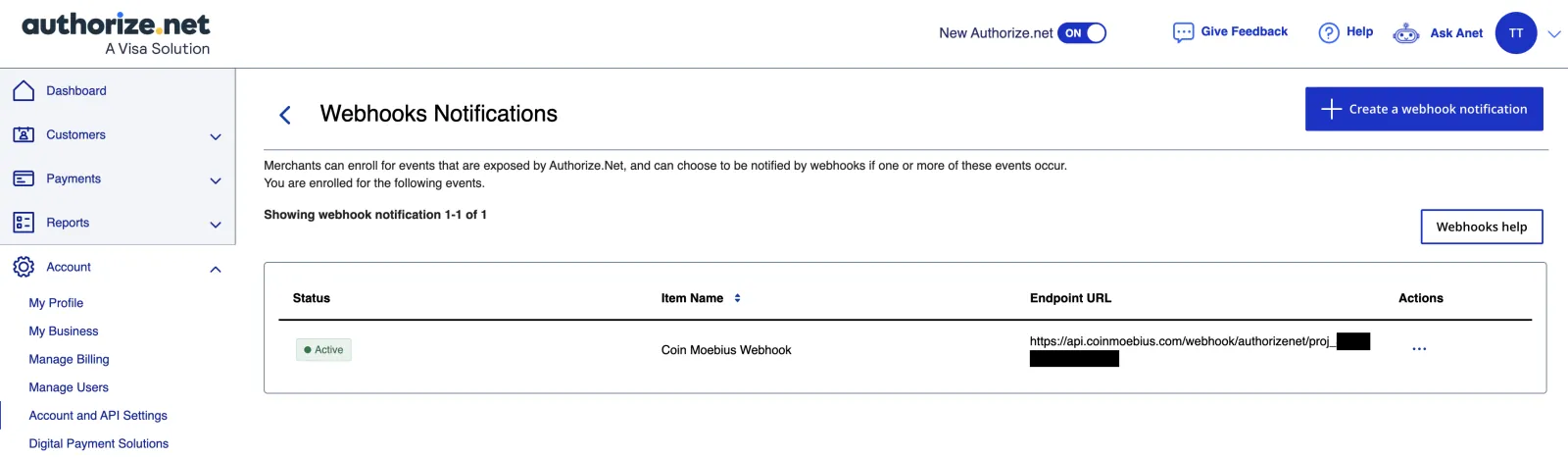

The saved notification appears in your Webhooks list as Active, with the endpoint URL you pasted. From here on, Authorize.Net signs each delivery with your Signature Key.
Authorize.Net → Webhooks (active) Coin Moebius records each event id once and ignores duplicates, so replayed webhooks are handled for you.
- Connect in the Coin Moebius dashboard
In Coin Moebius, open Providers → Connect a provider → Authorize.Net, and set your Success URL and Cancel URL. Because the credentials above came from the sandbox, paste them on the Test (optional) tab (API Login ID, Transaction Key, and Signature Key, all three or none), then Save. When you go live, run the same steps in your paid account and paste the live credentials on the Live tab instead. Live and sandbox are verified separately.
- You are connected
Authorize.Net now shows on your Providers page with the webhook URL it expects. Open the card’s ⋯ menu and choose Edit connection to rotate keys or add your live set; Disconnect removes it.
Coin Moebius → Providers → Authorize.Net (connected) - Test with sandbox cards
With your sandbox provider connected, run a test payment to confirm everything works end to end. Sandbox cards never charge a real card: use any future expiration (for example 12/2030) and any CVV (3 digits, or 4 for American Express).
Network Card Visa 4111111111111111 Mastercard 5424000000000015 American Express 370000000000002 Discover 6011000000000012
After you connect
Run one test payment before going live:
- Create a product and set its Environment to Test. That runs the product on your sandbox credentials, so you can place a full order without moving money. (A Test product only runs on sandbox credentials, so add them first.)
- Place the buy button on a page (a local HTML file works) pointed at your store.
- Complete checkout with a sandbox test card from above.
- Open Transactions in your store and turn on Show test payments. A new row appears, marked Test. When its status reads Paid, your credentials and webhook are both working end to end.
Switch the product Environment to Live when you are ready for real payments.
Troubleshooting
Start with Verify. In the dashboard, click Verify (or Verify test credentials for the sandbox set) to check your API Login ID and Transaction Key.
Verify fails.
The API Login ID and Transaction Key must be the pair from the same account (live or sandbox). Re-copy both.
Signature verification fails.
The Signature Key is a different value from the Transaction Key. Copy the Signature Key from the same screen. The scheme is identical in sandbox and live.
Payment completes but the order stays pending.
Confirm the webhook URL matches exactly and that you subscribed to the payment events.
A Test product does not offer Authorize.Net at checkout.
A Test product only runs on sandbox credentials. With no complete sandbox set saved, Authorize.Net is left out of that product’s checkout and no card is charged. Add all three sandbox fields on the Test (optional) tab, or switch the product’s Environment to Live.
Confirm it end to end.
Authorize.Net only pings inactive webhooks: set the endpoint inactive, send a ping, then re-activate it, and watch the order update.
Good to know
Tokens are short-lived. The hosted form token lasts about 15 minutes. We mint a fresh one per checkout.
Currency. Authorize.Net is primarily a US, USD gateway. Non-USD depends on your processor agreement.
Rotating keys. Generate a new Transaction Key or Signature Key anytime, then paste it in. Saved secrets stay hidden. To change one, choose Replace and enter the new value.
